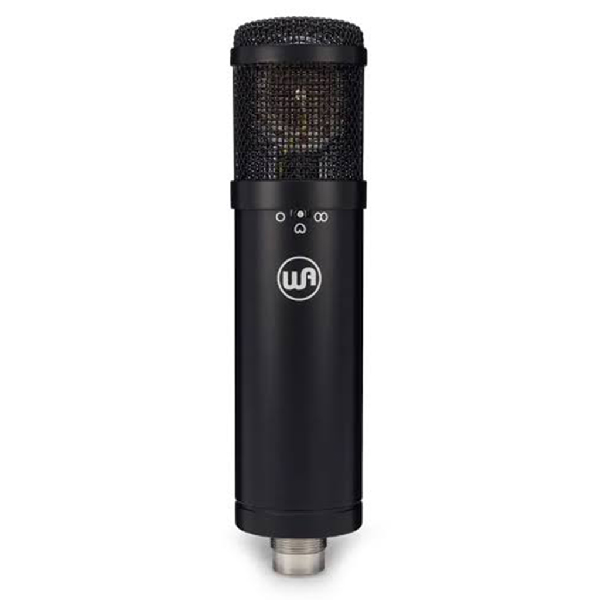

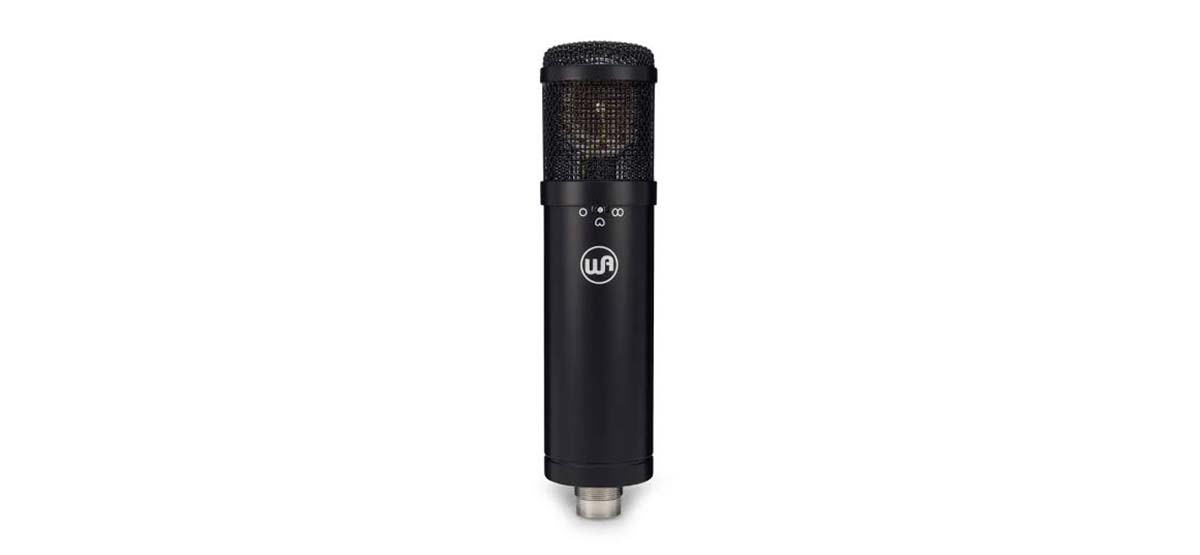

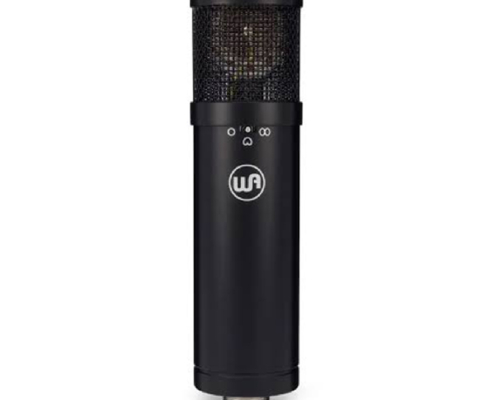

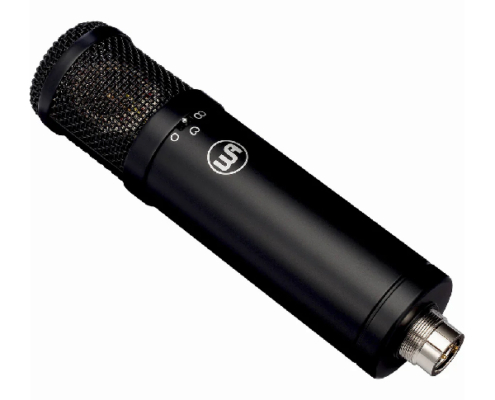

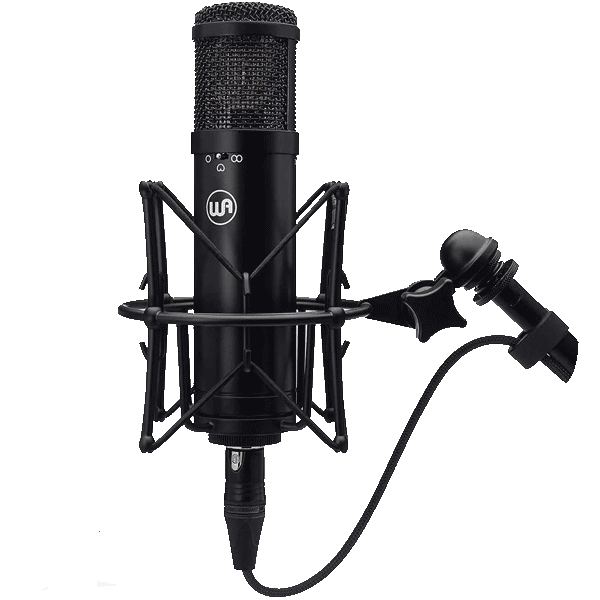

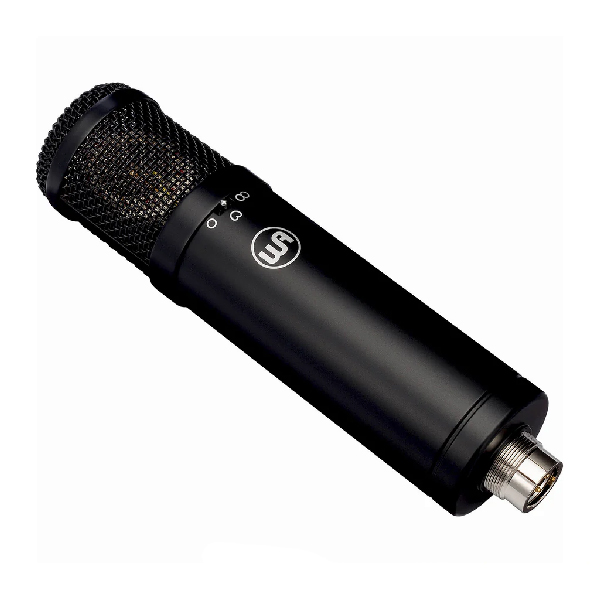

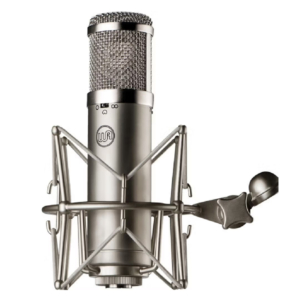

Warm Audio WA-47jr FET Condenser Microphone

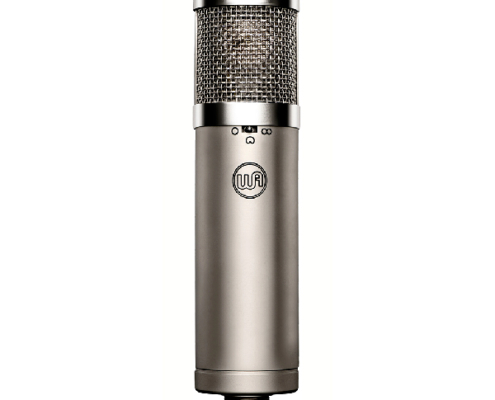

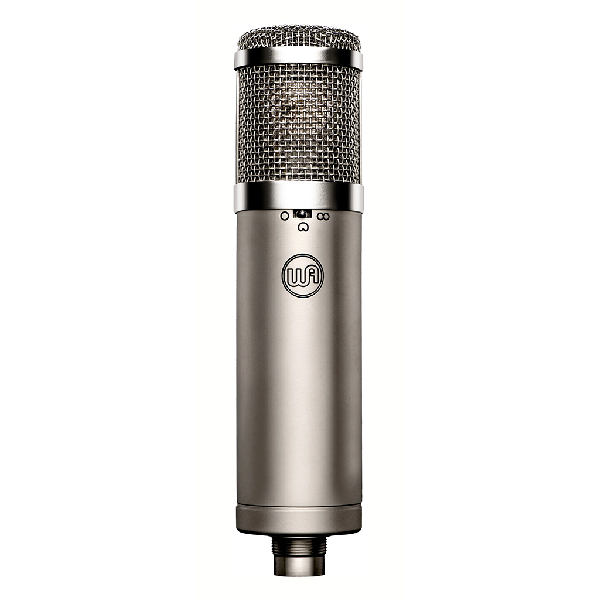

Large-diaphragm Condenser Multi-pattern Microphone with Highpass Filter and -10dB Pad – Nickel or Black
Did You Know That ... We Teach We Deliver We Support You Can Earn Points
WORLD-CLASS RESULTS WITH IMPRESSIVE VERSATILITY
Compared to tube mics, solid‑state options like the Warm Audio WA‑47jr FET are valued for their detailed clarity and low distortion—which is exactly why transformerless FET mics with a U47‑style capsule are so popular on kick drums and other percussion, capturing their punch and intensity with remarkable accuracy.
Naturally, the WA‑47jr FET excels on percussion, but it’s also a top contender for acoustic instruments where fast transient response is key, and it deserves a spot on your shortlist for vocals, electric guitar cabs, and much more. The real question might be: what doesn’t it sound great on?
THREE POLAR PATTERNS FOR IMPRESSIVE FLEXIBILITY

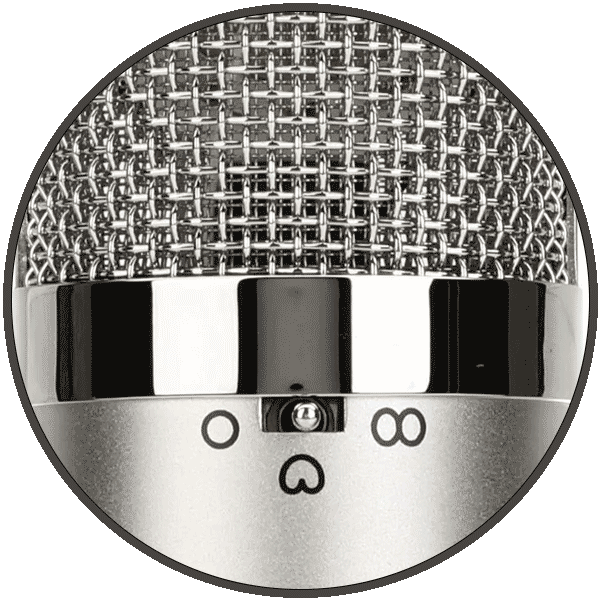

The WA-47jr’s three polar patterns — cardioid, omni, and figure-8 — give you impressive flexibility when it comes to exploring different recording techniques. Cardioid, with its moderate side and near-total rear rejection, is useful for just about any studio task. Omni is great for capturing room ambience along with your source.
Use a figure-8 technique to overdub a sax with natural slap or to record two singers on one mic (just be sure of the balance). And with two of these mics, you can implement stereo techniques such as spaced pair (A/B), XY (including Blumlein), ORTF array, and mid-side (M-S).
- Fully discrete, transformerless signal path
- Custom ’47-style k47 34mm gold-sputtered, dual-diaphragm, single–back plate, 6 micron Mylar capsule
- Toshiba FETs, Wima film capacitors, Panasonic electrolytic capacitors
- Cardioid, figure-8, and omnidirectional polar patterns
- 10dB pad; 70Hz highpass filter
- Self-noise: 9dBA
- Dynamic range: 138dBA
- Maximum SPL: 147/157dB (at 1kHz, 1 Kohm, 0.5% THD, 0/-10dB)
- Frequency range: 20Hz–20kHz
- Sensitivity: 10mV/Pa or -40dB
- Output impedance: 100 ohms
- Rated load impedance: ≥1 Kohm
- Maximum output: 16dBu at 1kHz, 1 Kohm, 0.5% THD
- S/N ratio: 85dBA (IEC651)
- Equivalent noise: 9dBA (IEC651)
- Dynamic range: 138dBA (IEC651)
- 48-volt phantom powered
- 3-pin gold-plated XLR connector

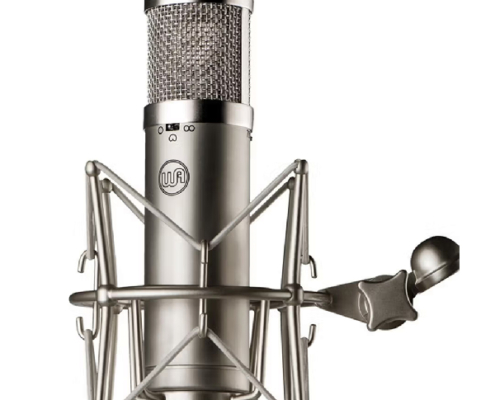

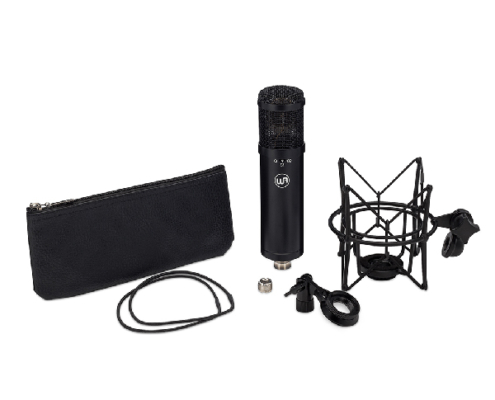

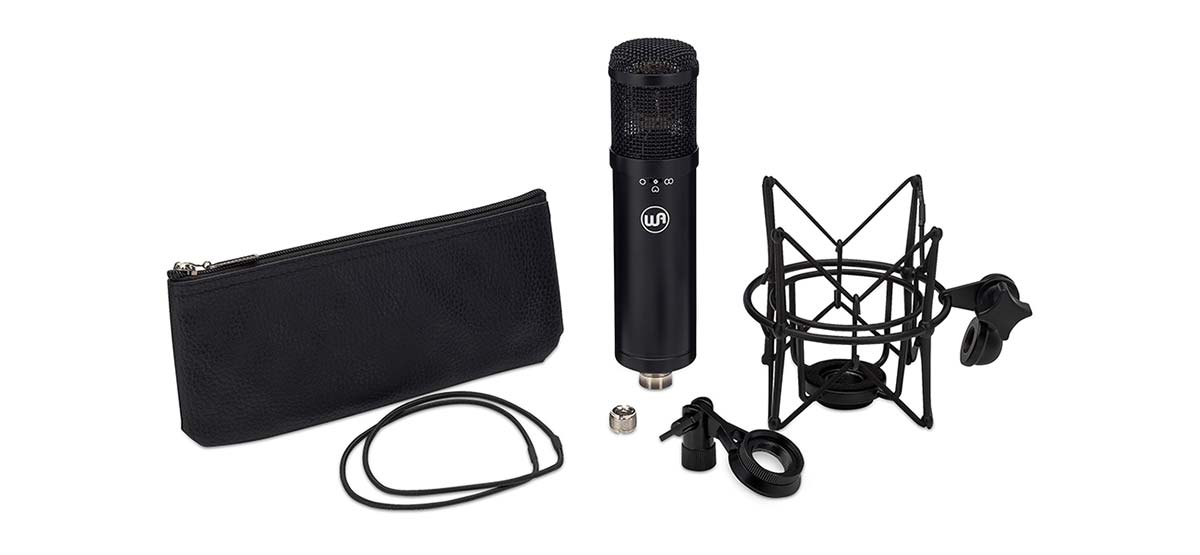

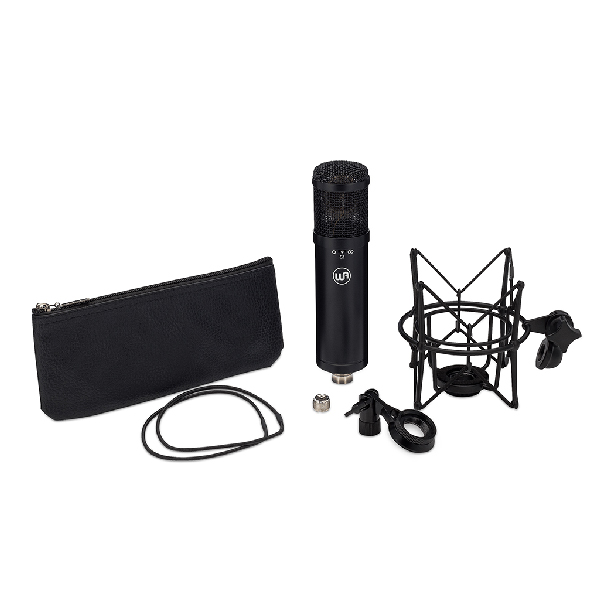

- Includes shockmount, hardmount, and zipper storage pouch
