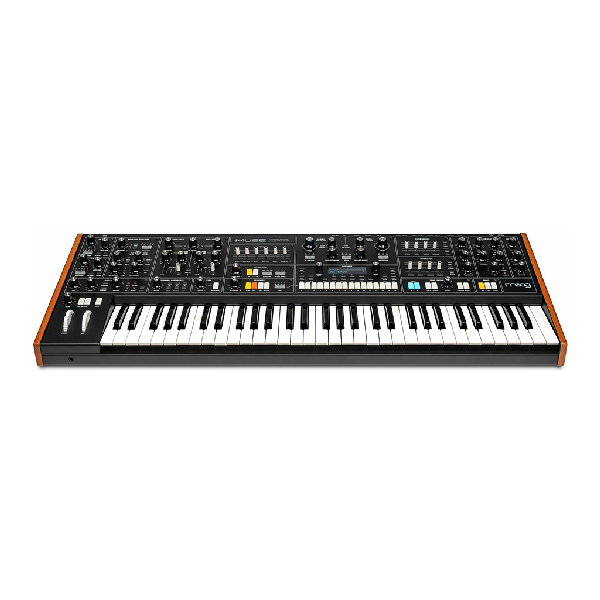

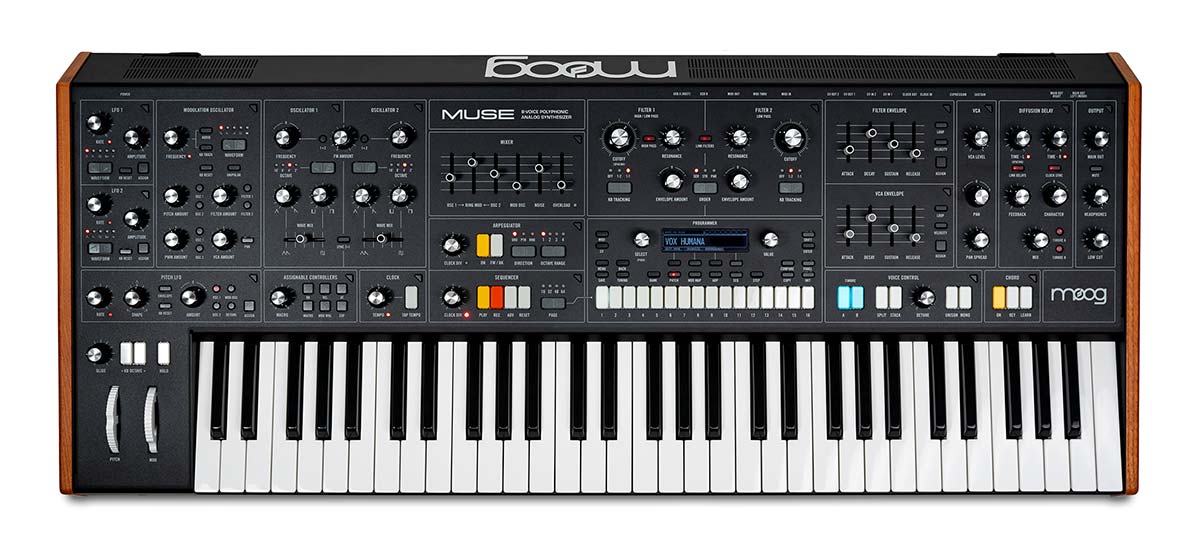

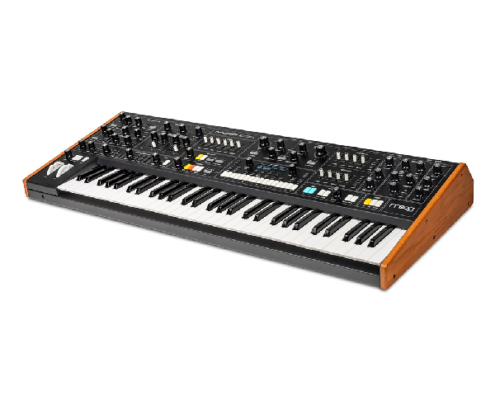

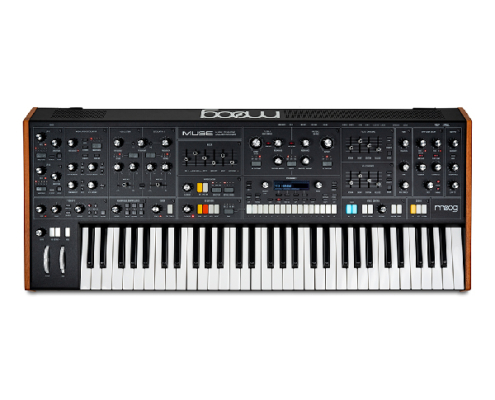

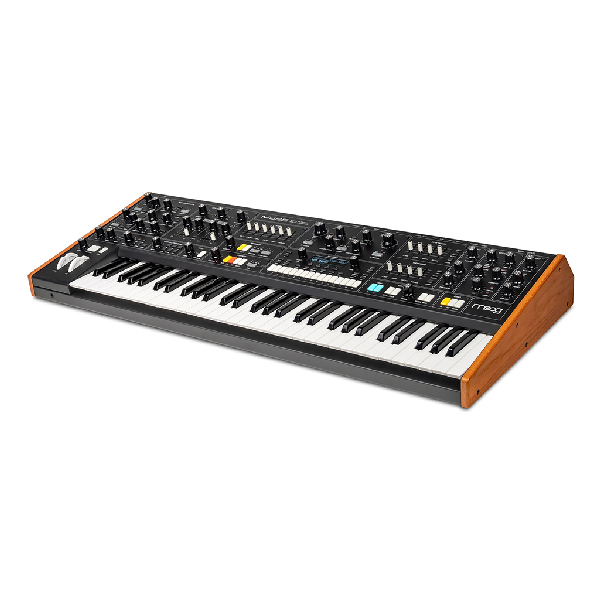

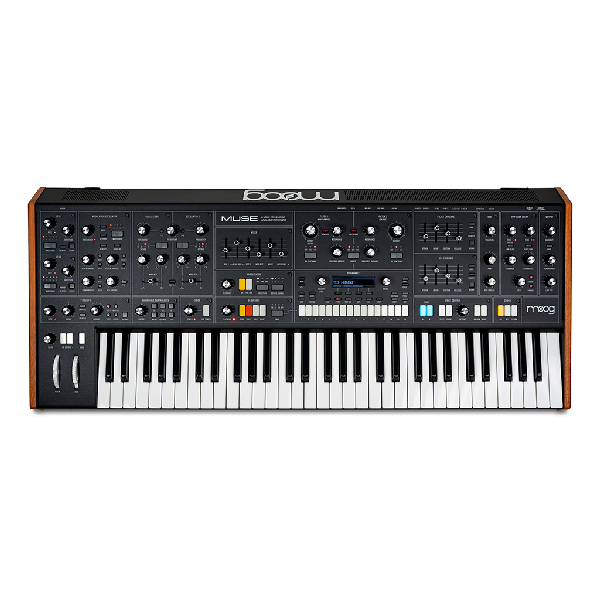

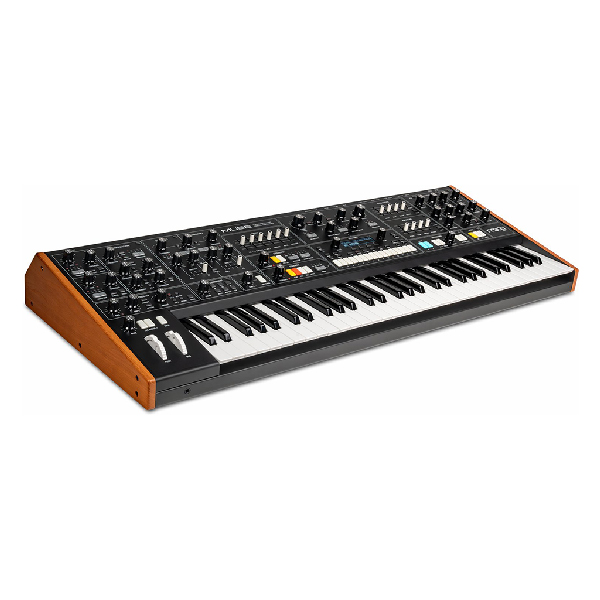

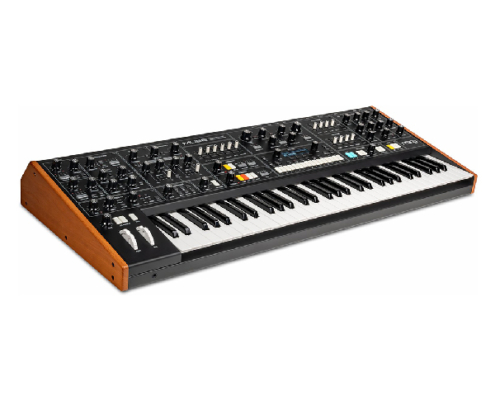

Moog Muse Synthesizer
61-key Analog Bi-timbral Synthesizer with 8-voice Polyphony, 2 VCOs, 2 LFOs, 2 VCFs, 2 ADSR Envelopes, Ring Modulation, Modulation Oscillator, Pitch LFO, Voice Control, and Aftertouch
Did You Know That ... We Teach We Deliver We Support You Can Earn Points
CLASSIC MOOG POTENCY
Drawing on decades of synth craftsmanship, the Moog Muse is a standout modern polysynth, blending vintage style, innovative design, and rich tone. Its 8-voice bi-timbral operation offers easy dual-sound creation, with extensive per-stage controls for full expression. The 61-key semi-weighted keyboard connects to two voltage-controlled oscillators, two LFOs, a modulation oscillator, dual filters, two ADSR envelopes, and an onboard VCA—all navigated through 44 knobs, 16 sliders, and 129 buttons.
Additional features include CV I/O, sequencing, arpeggiation, chord memory, an OLED browser, and Moog’s Diffusion Delay. Built on deep research, the Muse provides detailed Moog sound and modern versatility to elevate any synthesis vision.

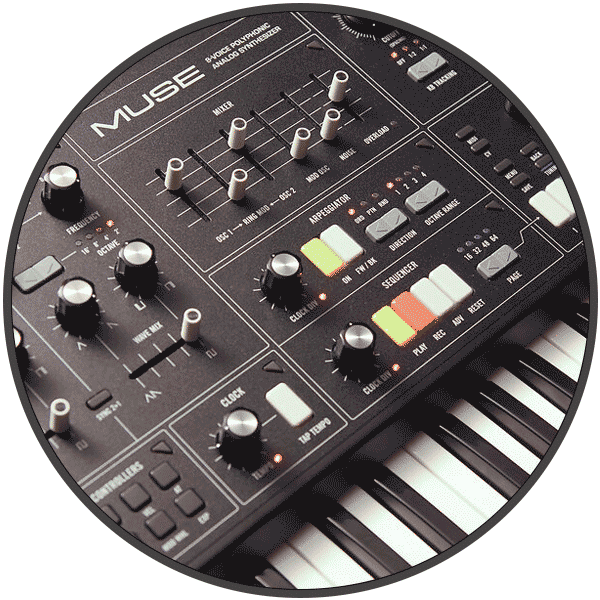

ARPEGGIATOR & SEQUENCER ENGINES
Operable via built-in clock controls or an external clock input, the Muse’s arpeggiator engine features front-panel Direction (forward/backward) and Octave Range controls for on-the-fly navigation. Further experimentation within the Muse’s Programmer reveals buildable rhythms, gate length control, and probability settings for myriad percussive and melodic creations.
The synth’s sequencer engine offers adjustable 16-, 32-, 48-, and 64-step sequences with Play, Record, Advance, and Reset controls. Of course, accessing the sequencer via the Programmer panel provides expanded gate length and velocity controls and sequence saving for future recall to use alongside any factory or user-created preset.
MODULATION MAGIC
In addition to its dual onboard LFOs, the Moog Muse’s dedicated voltage-controlled modulation oscillator engine supplies an entirely new plane of experimental routing potential that’s capable of manipulating pitch, envelopes, random generation, and much more. The per-voice, per-patch, and sound-shaping possibilities are virtually limitless, spanning gently chorused soundscapes to complex effects dynamics and beyond, with everything being entirely routable on the mod map via 16 modulation slots.
Moreover, with five selectable waveforms under its belt (sine, sawtooth, reverse sawtooth, square, and noise) and a dutiful set of modulation parameters onboard, dictating the exact behaviors of the modulation oscillator to attune to your specific sounds is seamless.
- 8-voice bi-timbral analog synthesizer spanning years of passion, research, and design — overcoming modern engineering benchmarks as Moog’s 4th polysynth
- 61 full-size semi-weighted keys with velocity and aftertouch facilitating sonic expression
- Pitch and Mod wheels, Macro knob, Keyboard Octave switch, Hold switch, and assignable pedal functions provide maximum performance control

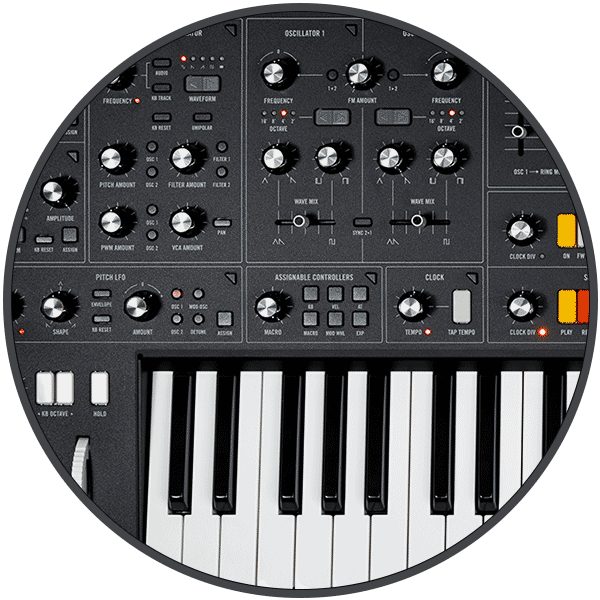

- 2 voltage-controlled oscillators with adjustable triangle/sawtooth mix and variable-width pulse wave control — manipulable via FM Routing, Ring Modulation, and Hard Sync controls
- Voltage-controlled modulation oscillator with selectable sine, sawtooth, reverse sawtooth, square, and noise waveforms paves the way for boundless behavioral possibilities
- 2 fully loaded LFOs with waveform selection (triangle, sawtooth, square, sample-and-hold, and user customizable)
- In-depth mixer provides precise, independent level control over both oscillators, the modulation oscillator, and additional Noise and Ring Mod controls
- 2 traditional transistor ladder filters (1 highpass/lowpass) with KB Tracking, Envelope Amount, and routing options pour modernity into classic Moog sound sculpting

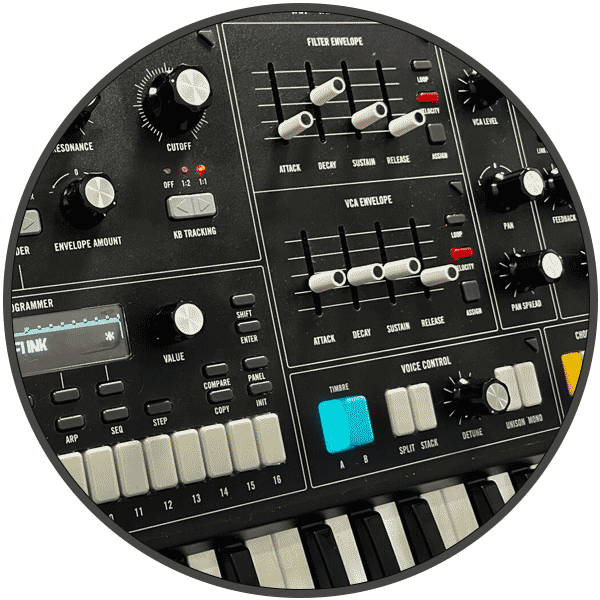

- Twin ADSR envelopes with variable curves, multi-trig, and velocity control
- LCR, LCT, and EXP selectable glide types
- Mono/poly timbre voice count modes with unison/mono, detune, and voice stealing
- Clock rate control with Tap Tempo button for on-the-fly timing adjustments

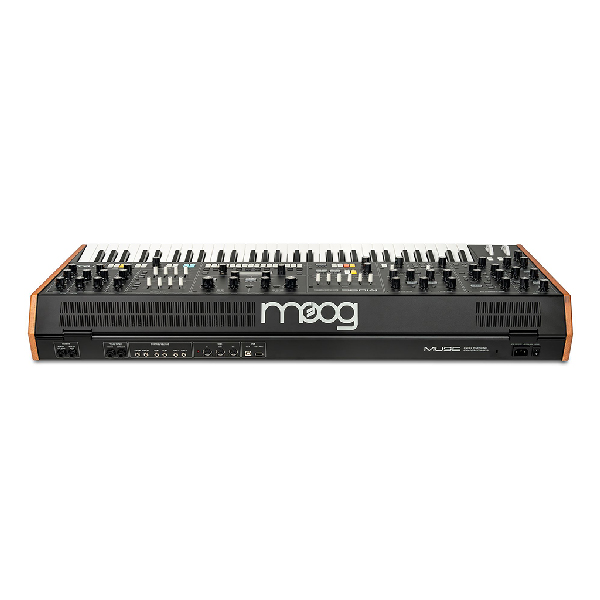

- Clock syncing via back-panel 1/8-in. clock input and output ports
- Voltage-controlled amplifier with per-timbre Volume, Pan Position, and Pan Spread parameters to inject massive sonic width into any patch
- User-customizable arpeggiator engine and 16-, 32-, 48-, and 64-step sequencer with clock division and rhythmic programming tools
- Programmer OLED browser and preset screen — 256 patch slots (224 factory presets)
- Built-in Moog Diffusion Delay signal processor with Delay Time Left, Delay Time Right, Feedback, Character, Mix, and bypass parameters
- 16-slot modulation map with controllers and transform functionality
- Master volume and headphones volume output controls with low-cut EQ

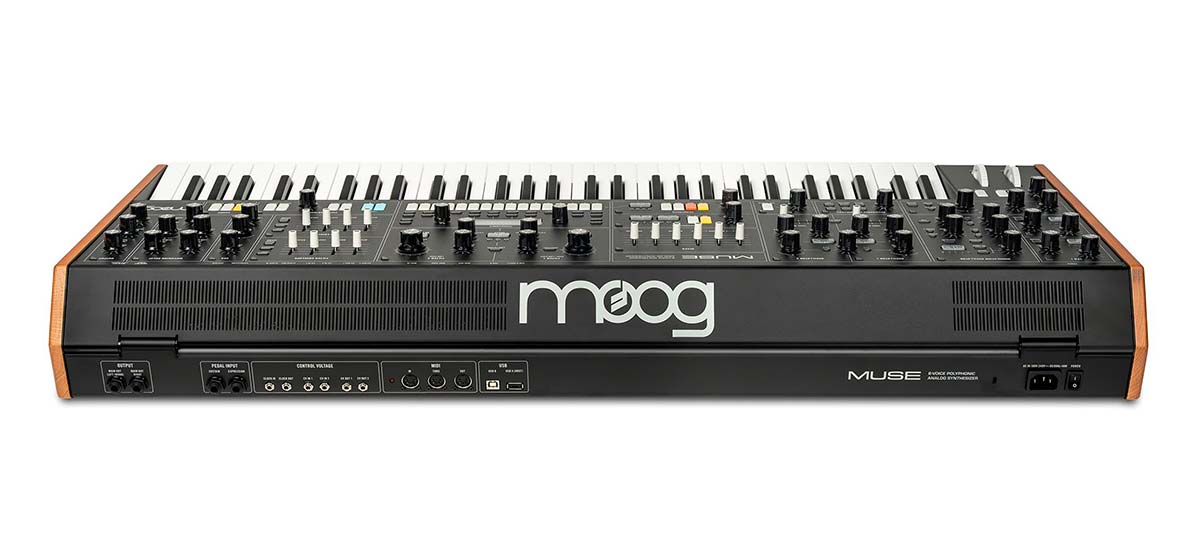

- 5-pin MIDI In, Out, and Thru with MIDI over USB control
- 1/8-in. TS CV input and output
- 100% pure analog signal path when bypassing digital effects
